UV LED curing dryer system of printing drying lamp curing light 395nm uv led curing light

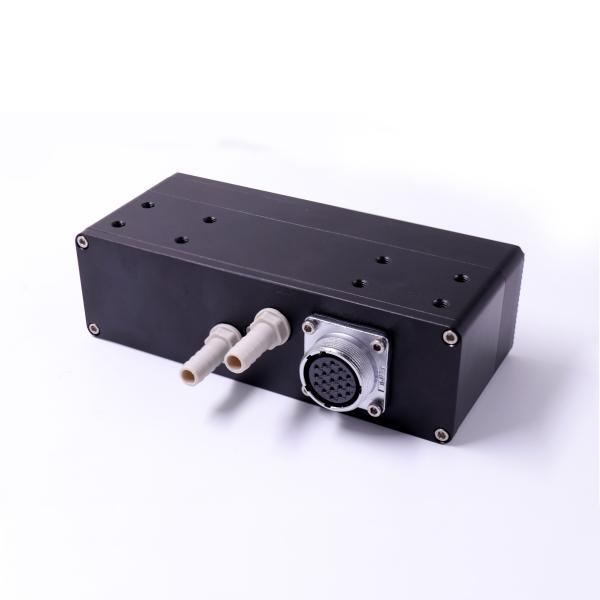

LN-CP-300 600W UV LED System

Parameters

Power:600W(MAX)
Wavelength:395nm
Dimension:3160mm(L)*48mm (W)*68mm(H)
Lighting Area:150mm*20mm
Optical Intensity:>10w/cm2
Recommend Radiation distance:3-10mm
Control method:Switching signal:Dimming 0-600W
Cooling method:Water cooling
Design Advantage:

1,Long life span

2,low thermal resistance

3,High effiency 45%-55%

4,Ingorganic encapsulation

5,High density and intensity

6,Screw free assemble for high power curing use

7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design

8,Optical optimal with special view angle in 30DEG, 60DEG or 120DEG

Appilcation:

1,UV curing

2,LED growing market

3,Offset printer

4,3D printer

5,Exposure machines

6,Inkjet printer

7,High intensity curing Market like 3KW,7kW,15KW..

CHIPS:High power SMD or COB
LENS:QUARTZ GLASS LENS
VIEW ANGLE:120°
Power adjustment:10-100%
VF:AC 220V
Signal Port Voltage:0-12V

Warranty:10,000Hrs or 2 years

600W 395nm UV LED System Design Advantages and Applications

UV LED Curing System customized service lines

Package Info&Shipping Info for the UV LED System

FAQ:

About Learnew opto and brand story

LEARNEW OPTO has 8 fully automated production lines and 2 industry-level laboratories
8 fully automatic production lines are opened at thet same ime

Each of our machines can complete the production of 40,000 chips in 1 hour, which demonstrates our efficient production capabilities. And deliver high-quality products to customers in a timely manner.

The 24-hour production line enables our daily production capacity to reach an impressive 4KK chips (equivalent to 4,000,000 chips). This means we are able to produce on a large scale, ensure timely supply, and can meet large orders from our customers.

Our team is experienced and pays close attention to the production process and quality control. Each production line is carefully tuned and optimized to ensure the highest efficiency and production quality. We continue to improve and innovate to improve production capacity and product quality, and provide customers with excellent LED lighting solutions.

At LEARNEW OPTO factory, our productivity and professional capabilities will help you meet market demands and provide superior LED lighting products to make you stand out in the highly competitive market.
