| Brand Name : | LEARNEW OPTO |
| Certification : | CE/RoHs |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal，Alipay, T/T |
| Supply Ability : | 500,000PCS per month |
| Delivery Time : | 1-7 working days for samples, 1-4Weeks for quantity Order |
Customized Service UV LED Chip 0.5W - 10W 20W 24W 50W 100W 110W 200W 400W
Free samples are available for UV LED chip series styles; details are as follows

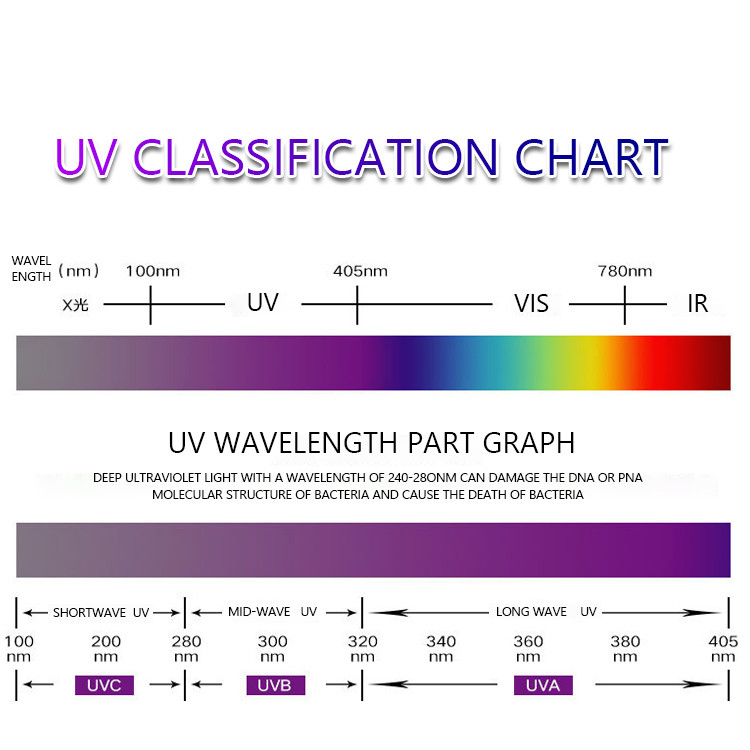

| product type | Dominant Wavelength | WHOLE SIZE | Packaging material | Application |
| UVA LED chip | 365nm,385nm,398nm,405nm,420nm | 2.8*3.5MM-80*25MM | SILICON LENS,QUARTZ GLASS LENS,Silica | LED plant Growing Market,Insect repelling market,3D printer |
| UVB LED chip | 290nm,300nm,306nm,310nm,315nm | 3.5*3.5MM | QUARTZ GLASS LENS | animal growth, calcium supplementation |
| UVC LED chip | 220nm,235nm,250-280nm,395nm,405nm | 3.5*3.5MM 4.0*4.0MM 6.0*6.0MM | QUARTZ GLASS LENS | Air purifier Water purifier Washing machines |
Detailed recommendation of UVA LED CHIP, UVB LED CHIP, UVC LED CHIP products
Model | IF | VF | WHOLE SIZE | Optical Power | Design Advantage | Appilcation |
LN-SMD6868UV-P4 | 1500mA (Max=2A) | 6.0-7.0V | 6.8*6.8MM | 3200-4000mW | low thermal resistance High effiency 40%-50% Ingorganic encapsulation | UV curing,Inkjet curing,LED plant Growing Market,Offset printer,3D printer and Exposure curing |
LN-SMD2835UV-P0.5 | 150mA | 3.4-3.8V | 2.8*3.5MM | 150-200mW | Cost performance Long life span Easy replace | LED plant Growing Market,Insect repelling market,Nail salon or color change |
LN-SMD3535UVB-P1D | 100mA | 5-7V | 3.5*3.5MM | 4-7 mW 10-14 mW 14-18 mW | High radiant flux Narrow Wavelength Low thermal resistance | Animal calcium supplement Plant growth hormone supplement |
LN-SMD3535UVAC-P0.5L | 50mA | 5-7V 3.0-3.6 V | 3.5*3.5MM | 4-6mW 50-70mW | High radiant flux Narrow Wavelength Low thermal resistance | Air purifier Water purifier Washing machines |
LN-SMD3535UVC-P3D | 350-500mA | 5-7V | 3.5*3.5MM | 50-70mW | High radiant flux Narrow Wavelength Low thermal resistance | Air purifier Water purifier Washing machines |
LN-SMD3535UVC-P1 | 100mA (max=150mA) | 5-7V | 3.5*3.5MM | 20-30mW | High radiant flux Narrow Wavelength Low thermal resistance | Air purifier Water purifier Washing machines |
COMPANY PROFILE
About Learnew opto and brand story(Artificial supplemental horticultural lights)
Dedicated to efficient agriculture with LED technology
Engaged in LED products manufacture,R&D and market nearly decade years, SupportOEM & ODM
Learnew own 8 automatic production lines,2 industry level laboratories to support bothLED components(SMD LED & LED COB) and LED grow light
Professional foreign trade sales team, the average member of more than 3 years ofrelevant work experience
Market cover North America, European, South America and Southeast AsianFamous customers include TOSHIBA LIGHTIN,FLEXTRONICS...
Learnew project team with more than 3 years experience of big greenhouse build
ABOUT US
FACTORY DISPIAY
OVERSEA SALES TEAM
Sample customization process
Our products are factory direct sales, to provide you with one - to - one product customization service
1 . Customer sample analysis
2 . Engineering matching proofing
3 . Sample comparison certification
4 . Sample delivery on time
We aim at high quality and zero defect, and give you the best quality products and best service; the product shelf life can be up to 2 years.
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2:Yes, the pictures of all products on this page are 100% real
shoot by us.
Q3: How can l get a quotation from you?
A3: Please kindly leave us messages about your need;,including
products and quantity,our professional team will reply you very
soon(mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we
can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping
cost?
A5: Yes, we support drop shipping. You should leave the receiver's
information when you place the order, then we will send the
goodsaccording the address you have left. The shipping cost are
based on your order's volume and weight, and it can be calculated.
Q6:How to place an order?
A6: lf you want to place an order,Please feel free to send us an
inquiry email or contact us by trademanager online,we will reply
you within 24hours(working day).
Q7: What payment terms are available?
A7:T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: lt depends on the order quantity In general, lead time is about 3-30working days. For samples, the delivery could be as fast as sameday
|
|
