    405nm High Power SMD UV LED 1W 3W 3838 3535 LED Chip

    Ask Lasest Price
    Brand Name : LEARNEW
    Model Number : LN-SMD3838UV-P1/LN-SMD3838UV-P1E/LN-SMD3535UV-P1
    Certification : CE RoHS SGS
    Price : Negotiable price
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 2,400,000PCS per month
    Delivery Time : 7-12 working days
    • Product Details
    • Company Profile

    405nm High Power SMD UV LED 1W 3W 3838 3535 LED Chip

    Hot sale LG Seoul Chip high efficiency glass quartz UVA 365nm 385nm 395nm 405nm 1w 3w 3535 3838 high power smd UV Led


    Product Specifications

    modelsLN-SMD3838UV-P1LN-SMD3838UV-P1ELN-SMD3535UV-P1
    Electronic power1-3W1-3W1-3W
    Peak wavelength

    UV=365nm

    UV=385nm

    UV=395nm

    UV=405nm

    UV=365nm

    UV=385nm

    UV=395nm

    UV=405nm

    UV=385nm

    UV=395nm

    UV=405nm

    Radiant power800-1300mW800-1300mW1000-1500mW
    Working current350-700mA350-700mA350-700mA
    Working voltage3.0-3.8V3.0-3.8V3.0-3.8V
    Circuit1S1P1S1P1S1P
    Packing technologyNew Generation Vertical chip LG/Seoul semi/EpistarNew Generation Vertical chip EpiLED/SananNew Generation Vertical chip EpiLED/Sanan
    LED Diode size3.8*3.8mm3.8*3.8mm3.5*3.5mm
    LENSQuartz GlassQuartz GlassSilica
    View angle60DEG60DEG120DEG
    Substrate designALN copperingALN copperingALN coppering
    Thermal resistance0.1-0.2C/W0.1-0.2C/W0.1-0.2C/W
    Life span(LM70)30,000 hrs30,000 hrs20,000 hrs

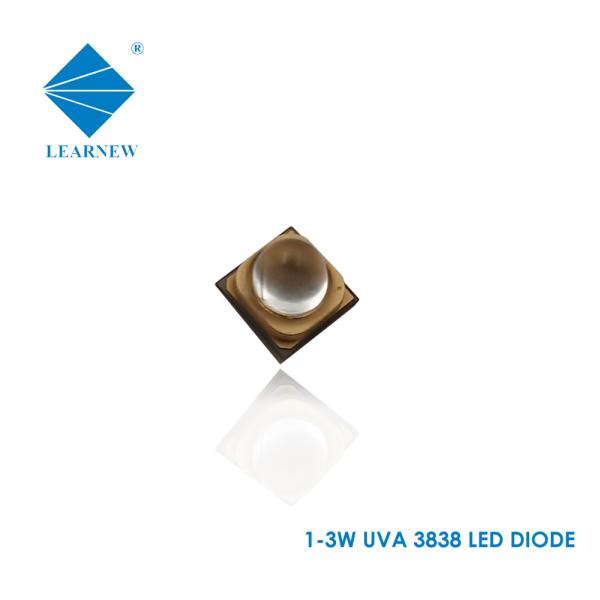

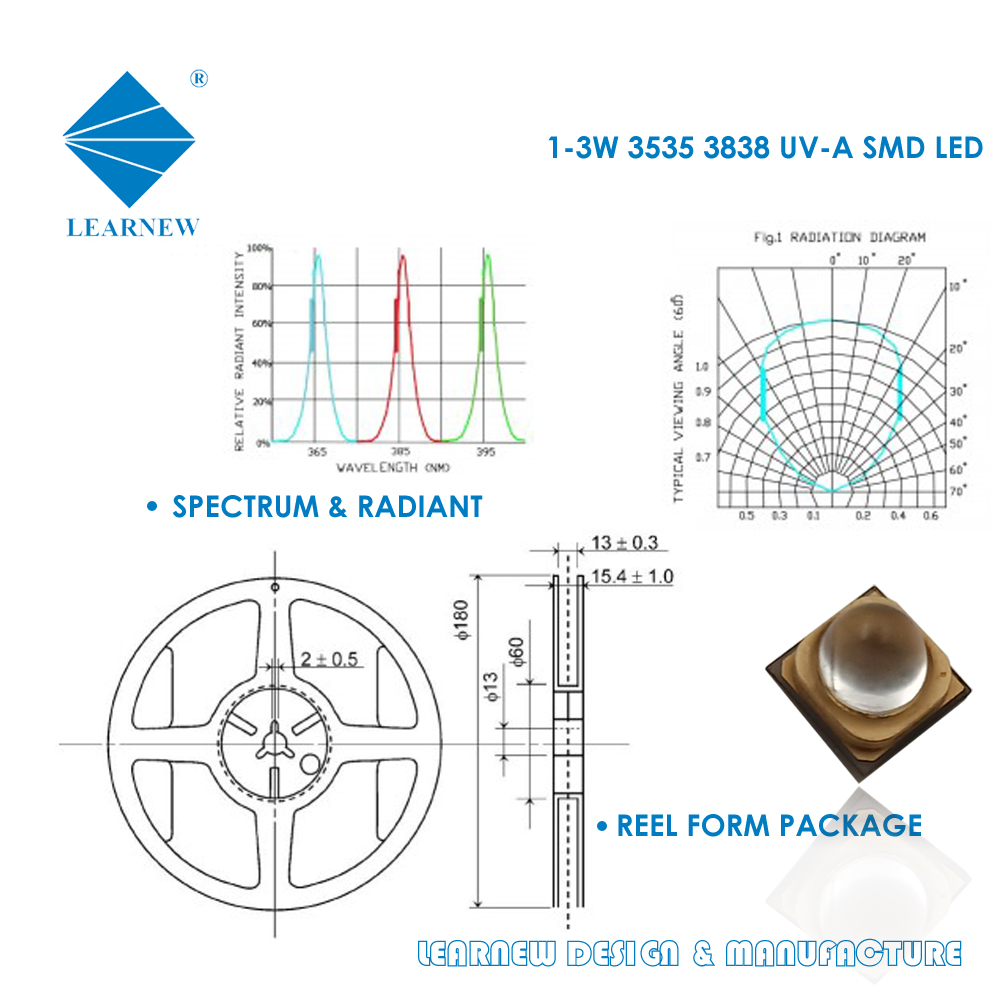

    Product Image


    DESIGN ADVATAGE

    • Long life span
    • Certifications
    • High efficiency
    • Low thermal resistance
    • Ingorganic encapsulation




    FAQ

    Q1: Do you supply OEM,ODM service?

    A1: YES,absolutely it can be realized.


    Q2: All the pictures are real photo?

    A2: Yes, the pictures of all products on this page are 100% real shoot by us.


    Q3: How can I get a quotation from you?

    A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).


    Q4: Is there any discount for bulk order?

    A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.


    Q5: Do you support drop shipping and how much is the shippping cost?

    A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.


    Q6: How to place an order?

    A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).


    Q7: What payment terms are available?

    A7: T/T,PayPal, Western Union and Secure Payment.


    Q8: What about the lead time?

    A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples, the delivery could be as fast as same day.

    We have professional laboratories and researchers, and carry out a large number of experiments and tests on the ratio of lamp beads to ensure the scientific and effective. We warmly welcome to send us the engineering drawing of your project to get the solutions for you.
