High Power LED 100W 4046 UV IR LED COB Module

Shenzhen Learnew Optoelectronics Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Power LED 100W 4046 UV IR LED COB Module from wholesalers

    Buy cheap High Power LED 100W 4046 UV IR LED COB Module from wholesalers
    • Buy cheap High Power LED 100W 4046 UV IR LED COB Module from wholesalers
    • Buy cheap High Power LED 100W 4046 UV IR LED COB Module from wholesalers
    • Buy cheap High Power LED 100W 4046 UV IR LED COB Module from wholesalers
    • Buy cheap High Power LED 100W 4046 UV IR LED COB Module from wholesalers

    High Power LED 100W 4046 UV IR LED COB Module

    Ask Lasest Price
    Brand Name : LEARNEW
    Model Number : LN-CVS40IR-P100-25
    Certification : CE RoHS SGS
    Price : Negotiable price
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100,000PCS per month
    Delivery Time : 7-12 working days
    • Product Details
    • Company Profile

    High Power LED 100W 4046 UV IR LED COB Module

    high radiant Infrared skin care 100W 800-850nm 4046 UV IR LED COB Module


    Product Specifications

    modelsLN-CVS40IR-P100-25
    Electronic power100W
    Peak wavelength800-850nm
    Radiant power20,000-30,000mW
    Working current3000mA
    Working voltage23-29V
    Circuit16S6P
    Packing technology

    New Generation Flip chip

    Sanan/EpiLED

    LED COB size40*46mm
    LES Size25*25mm
    View angle120DEG
    Substrate designALC coppering
    Thermal resistance0.2-0.5C/W
    Life span(LM70)2 years

    • Long life span,LM70>=10000 hrs and LM50>=30,000 hrs.
    • Certifications
    • High radiant flux
    • Low thermal resistance
    • High density and intensity
    • Narrow bin of peak wavelength
    • Super power for IR LED

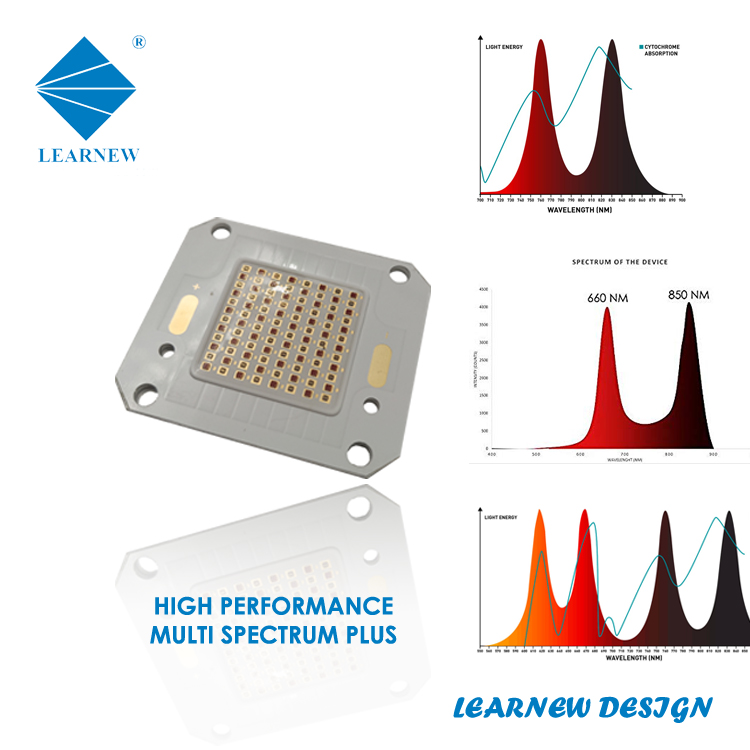

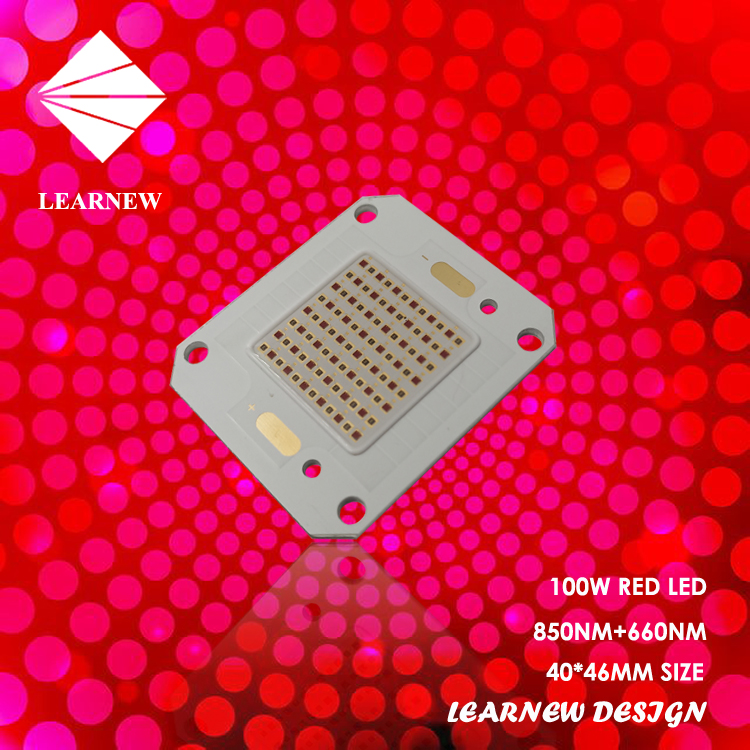

    Product Image

    FAQ

    Q: What technical support can I get after purchase?

    A: Data sheet and PDF will be provided to dear you. Our sales engineer will be answering your questions any time.


    Q: If there is LED failure, how can you support?

    A: Clients provide us with pictures of the failed products or the samples rejected And give a test report, our engineers of after sale team will analyze the failure reasons. If the failure was caused by Learnew, we will compensate with qualified replacement as fast as we could!


    Q: Would you offer free samples?

    A: Yes. For our factory to produce conventional white light products, we will provide 2pcs. The sample cost of other custom designed products will be deducted from the customer's subsequent orders.


    Q: Are you manufacturer or trade company?

    A: In worldwide market, Learnew is well know as an experienced and professional LED manufacturer.


    Q: What about the lead time?

    A: It depends on the order quantity. Generally the lead time should be 7-12 working days.


    Q: What payment method do you accept?

    A: We accept T/T, Paypal, Western Union and others more as clients’ requirements.
