2w 3535 High Power IR LED Chip 730nm 740nm 840nm 850nm Smd Led Chip

Ask Lasest Price
Brand Name :	LEARNEW OPTO
Model Number :	LN-SMD3535IR-P1
Certification :	CE/RoHs
Price :	Negotiable
Payment Terms :	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500,000PCS per month
Delivery Time :	1-7 working days for samples, 1-4Weeks for quantity Order

Add to Cart

Product Details
Company Profile

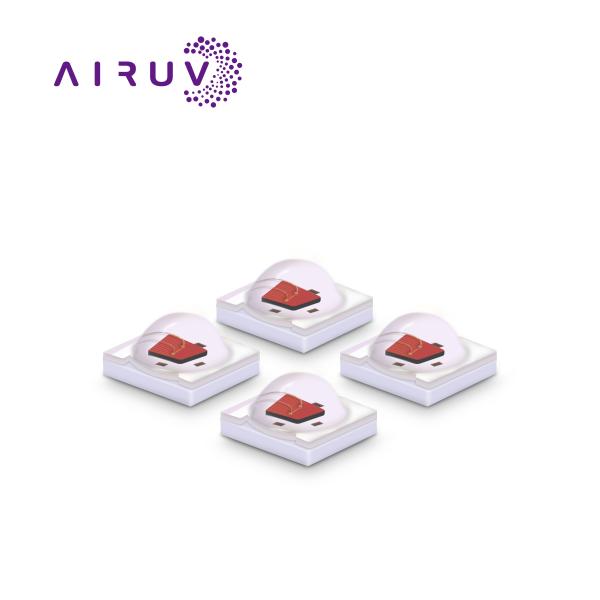

2w 3535 High Power IR LED Chip 730nm 740nm 840nm 850nm Smd Led Chip

2w 3535 High Power Ir Led Chip 730nm 740nm 840nm 850nm Smd Led Chip

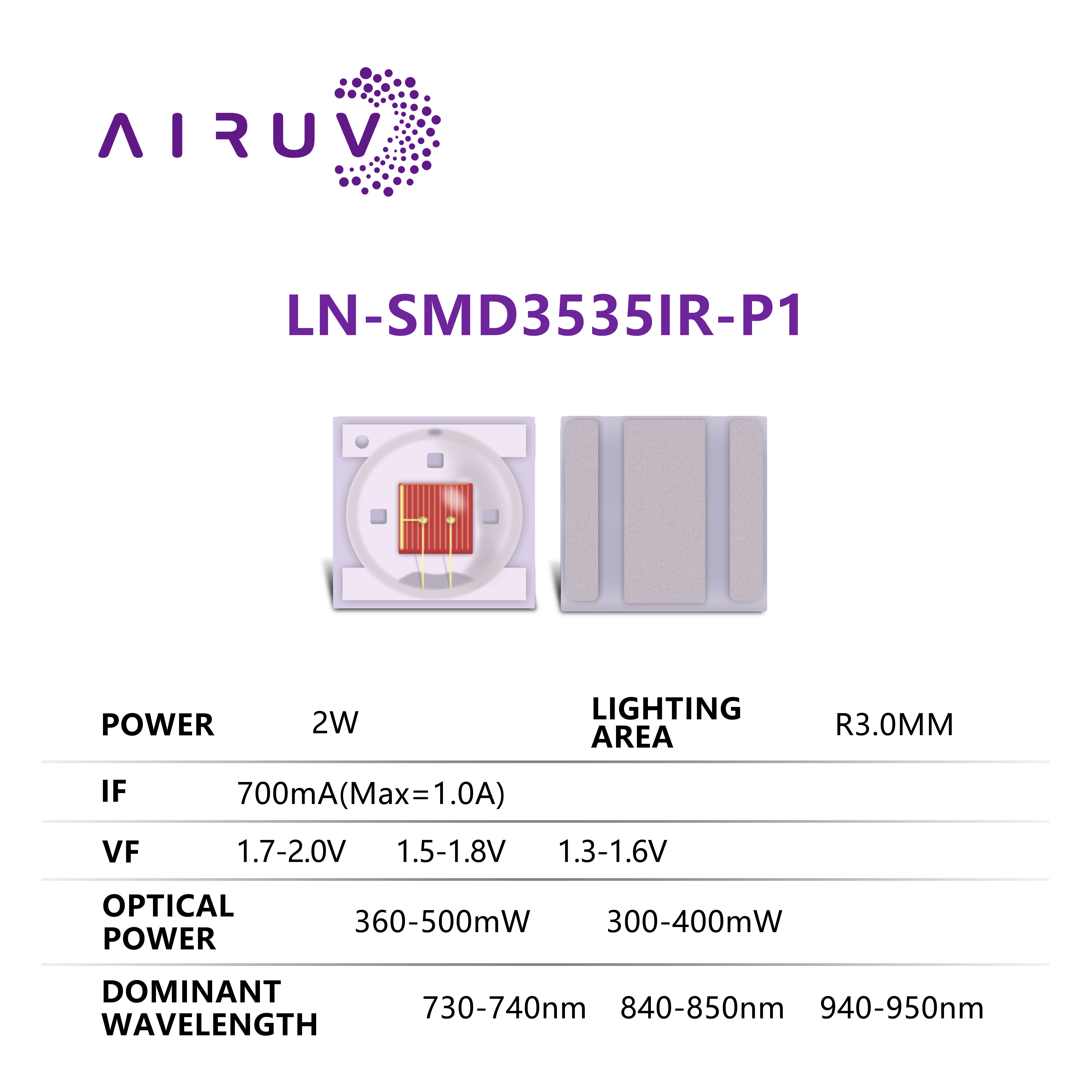

3535 IR LED Specification

INFRARED

POWER

Dominant Wavelength

Optical Power

Circuit

WHOLE SIZE

Lighting Area

VIEW ANGLE

LENS

SUBSTRATE

CHIPS

Warranty

LN-SMD3535IR-P1

730-740nm

360-500mW

700mA
(Max=1.0A)

1.7-2.0V

1S1P

3.5*3.5MM

R3.0MM

120°

SILICAN LENS

Ceramic

VERTICAL
(EPILED or EPISTAR)

2 years or 10,000 Hrs

840-850nm

300-400mW

1.5-1.8V

940-950nm

300-400mW

1.3-1.6V

Design Advantage

1,Long life span
2,low thermal resistance
3,High effiency 20%+
4,Ingorganic encapsulation
5,High density and intensity
6,Special view angle in 30DEG or 120DEG
7,Super power for IR series
8,Narrow peak wavelength

Appilcation

1,Sensor
2,Skin protection
3,Cameras
4,3D printing
5,Virtual Reality
6,Automotive
7,Machine Vision
8,Finger-vein Biometrics

2w 3535 High Power IR LED Chip 730nm 740nm 840nm 850nm Smd Led Chip

2W SMD IR LED CHIP FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3:How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
